Manually Install Driver for Sizzix eclips (Windows only)

The following is how to manually install the Driver for the Sizzix eclips cutting machine. The installer for the eCAL software for the Sizzix eclips will attempt to install the driver after installing the software. If it cannot install the driver, you can do it manually as shown below.

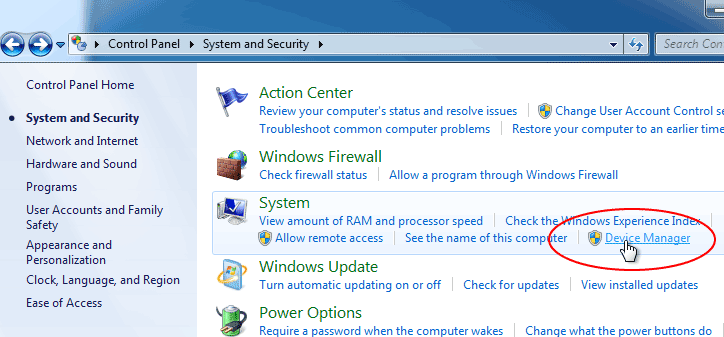

Go the Start Menu and choose Control Panel. Then choose Device Manager


In the Device Manager window, you should see an entry for an Unknown device which should be your Sizzix eclips machine.





Double click the Unknown device entry to bring up the Properties window for that device.
Go to the Details tab and make sure the Hardware Ids has values (USB\VID_03EB&PID_6124) as shown below to verify it is in fact the Sizzix eclips device. If it shows different values after the VID_ or PID_, then it is not the eclips.



If the Values match as shown in the screenshot, then go to the Driver tab and click the Update Driver... button



Choose Browse my computer for driver software



Click Browse.. and locate the Drivers folder where eCAL is installed and click OK.



If you get the following warning, click the Install this driver software anyway option.



If successful, you should get the following



And you should now see an entry in the Device Manager under the Ports for the Sizzix eclips
