Sure Cuts A Lot Bridge Setup (Adobe Illustrator)

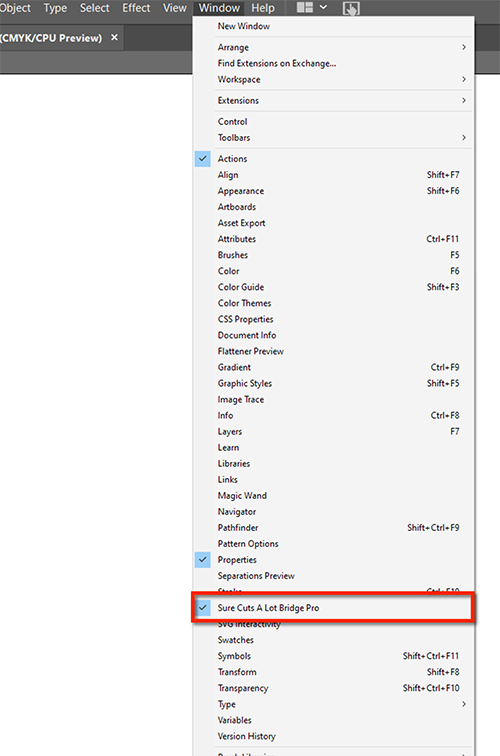

Sure Cuts A Lot Bridge is a plugin for Adobe Illustrator (2019,2020,2021) to allow you to cut your designs with your electronic cutting machine or plotter. After you install Sure Cuts A Lot Bridge, open Adobe Illustrator and you should see
"Sure Cuts A Lot Bridge" or
"Sure Cuts A Lot Bridge Pro" under the
"Window" menu.
After choosing Sure Cuts A Lot Bridge from the Window menu, the Sure Cuts A Lot Bridge panel should now be visible. Here you can choose Manage Cutters to add your cutting machine.

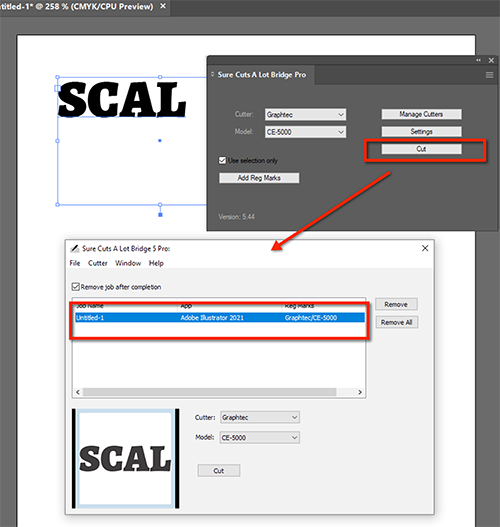

When you are ready to cut your design, click the "Cut" button and it will send the job over to the Sure Cuts A Lot Bridge job manager. You can see a list of all the jobs and send it to your cutting machine.

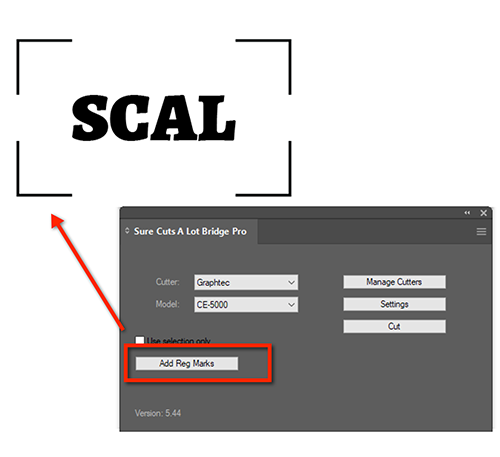

You can also choose to add registration marks around your design for Print+Cut (Contour cutting).
